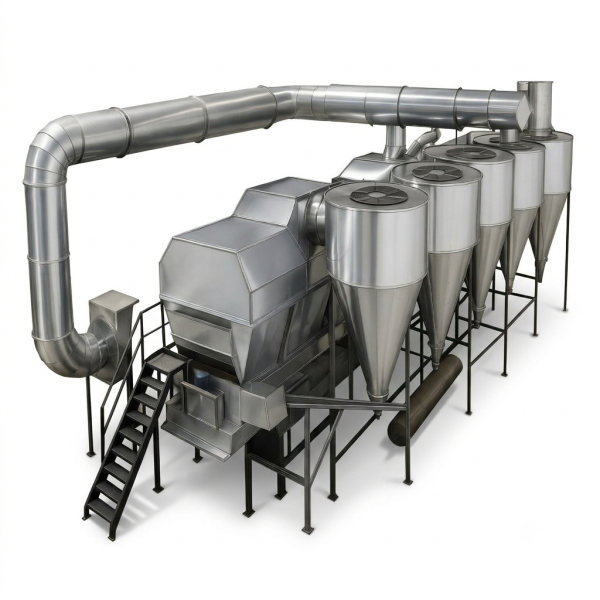

Fluid Bed Drier with Cyclones – 600 Kg/Hr

High Capacity: 600 kg/h throughput with ±5% tolerance.

Moisture Control: Input at 68% ±2%; output at 3.0% ±0.1% for consistent drying.

Tea Quality: Produces black, brisk, bright, thick, pungent tea; no case hardening or balling.

Fluidization: Gentle, uniform drying with 8″ fluidization height.

Energy Efficient: 8 Bar steam, ~3.2 kg/kg made tea; max temp 150°C.

Hygienic Build: AISI 304 stainless steel drying chamber; insulated carbon steel plenum.

Airflow & Dust Control: Stainless steel multi-stage cyclones with negative pressure for stability.

Integrated Systems: SS spreader and ball breaker ensure uniform feed and prevent clumping.

Efficient Heating: Steam-to-air heat exchanger, aluminium-finned steel tubes minimize fouling.

Electrical System: 415V, 3-phase, IP-54 motors with control panel and Star Delta starters.

Dust/Fiber Recovery: Cyclone system collects and stores dust/fiber-grade tea.

Maintenance-Friendly: Access panels, inspection windows, and safety features included.
